Equipment we supply and install

Models

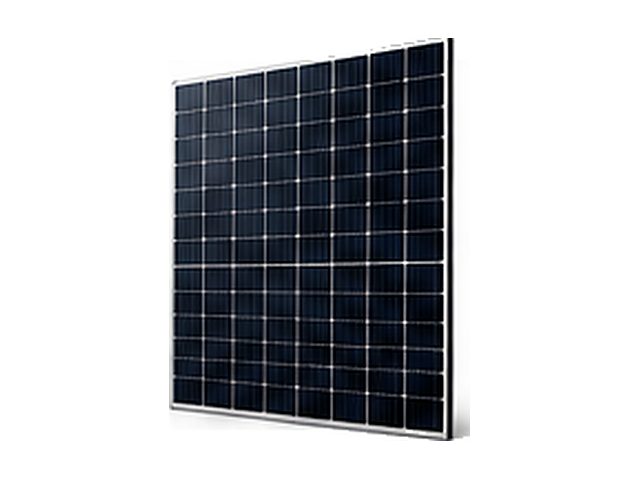

455 W: JAM72S20-455/MR, mono PERC, 144 half-cells. 595 W: JAM72D40-595/LB, n-type bifacial glass/glass, 144 half-cells

Voc / Isc

455 W: 49.85 V / 11.41 A; 595 W: 52.20 V / 14.42 A

Vmp / Imp

455 W: 41.82 V / 10.88 A; 595 W: 43.59 V / 13.65 A

Efficiency

455 W: 20.5 %; 595 W: 22.5 %

Temperature coefficient

Pmax: −0.35 %/°C (455 W); about −0.29 to −0.30 %/°C (595 W)

Size and weight

455 W: 2112 × 1052 × 35 mm, 24.5 kg; 595 W: 2333 × 1134 × 30 mm, 32.5 kg

Max. system voltage

455 W: 1000 or 1500 V DC by version (max. series fuse 20 A); 595 W: 1500 V DC

Maker's warranty

12 years product; 25 years (455 W) or 30 years (595 W) linear power

The 595 W is also made as JAM72D40-595/MB (2278 mm long, Voc 52.58 V). We read the label on the panels supplied before designing strings.

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

Models

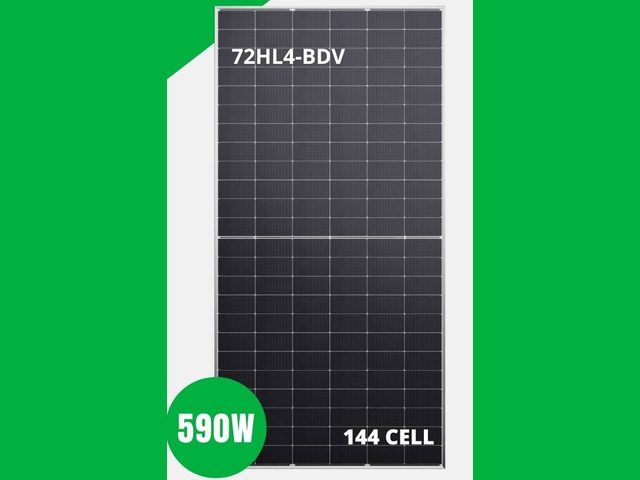

Tiger Neo 590 W: JKM590N-72HL4-BDV. 620 W: JKM620N-66HL4M-BDV

Cells

N-type TOPCon, bifacial dual-glass (bifaciality 80 ± 5 %); 590 W: 144 half-cells; 620 W: 132 half-cells

Voc / Isc

590 W: 52.90 V / 14.07 A; 620 W: 49.08 V / 16.08 A

Vmp / Imp

590 W: 44.17 V / 13.36 A; 620 W: 40.74 V / 15.22 A

Efficiency

590 W: 22.84 %; 620 W: 22.95 %

Temperature coefficients

Pmax −0.29 %/°C; Voc −0.25 %/°C

Size and weight

590 W: 2278 × 1134 × 30 mm, 31.0 kg; 620 W: 2382 × 1134 × 30 mm, 32.4 kg

Max. system voltage

1500 V DC; max. series fuse 30 A (590 W)

Maker's warranty

12 years product; 30 years linear power

A 620 W JKM620N-78HL4-BDV also exists (156 cells, Voc 55.58 V, 2465 mm long). We read the label on the panels supplied before designing strings.

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

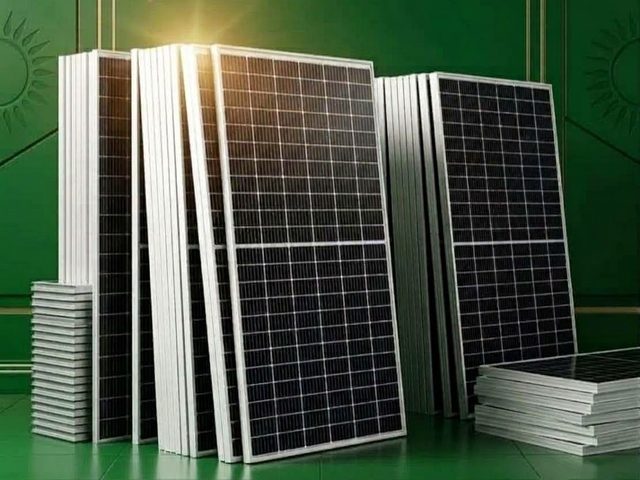

Cell type

Monocrystalline, half-cut cells; PERC or n-type TOPCon depending on model

Efficiency

Typically 21 to 23 %

Temperature coefficient

Pmax typically −0.29 to −0.35 %/°C

Max. system voltage

Typically 1500 V DC (some models 1000 V)

Construction

Anodised aluminium frame; tempered glass front (glass/glass on bifacial models); MC4-type connectors

Electrical values

Voc, Isc, Vmp and Imp depend on the model; we design strings from the datasheet of the panels supplied

Maker's warranty

Typically 12 years product and 25 to 30 years linear power

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

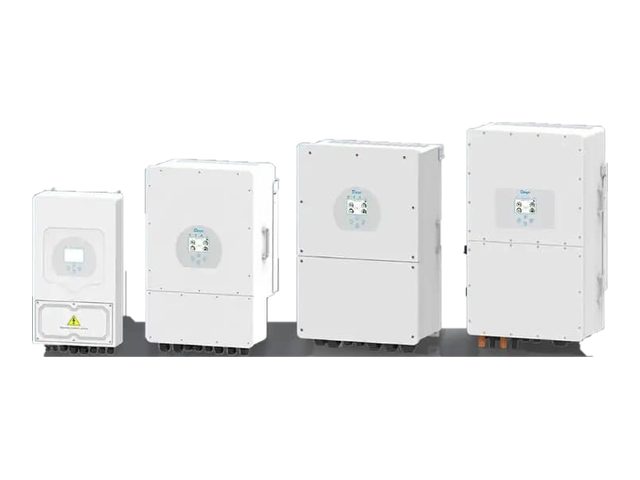

Models

SUN-5K-SG04LP1-EU; SUN-8K-SG05LP1-EU-SM2; SUN-10K and SUN-12K-SG02LP1-EU-AM3; SUN-16K-SG01LP1-EU

AC output

5 / 8 / 10 / 12 / 16 kW rated (max. 5.5 / 8.8 / 11 / 13.2 / 17.6 kVA); 220/230 V single-phase, 50/60 Hz

Surge

2 × rated power for 10 s (off-grid)

PV input

Max. 500 V; start-up 125 V; MPPT 150–425 V; 2 MPPTs on 5 kW (18 + 18 A) and 8 kW (26 + 26 A); 3 MPPTs on 10–16 kW (26 A each)

Battery

48 V systems (40–60 V), lithium or lead-acid; max. charge/discharge 120 A (5 kW), 190 A (8 kW), 220 A (10 kW), 250 A (12 kW), 290 A (16 kW)

Efficiency

Max. 97.6 %; Euro 96.5 %

Parallel

Up to 16 units, on-grid and off-grid

Protection

IP65; −40 to +60 °C (derates above 45 °C); Type II DC and AC surge protection

Size and weight

5 kW: 330 × 433 × 228 mm, 17 kg; 8 kW: 366 × 590 × 237 mm, 26.8 kg; 10/12 kW: 420 × 670 × 233 mm, 35.6 kg; 16 kW: 464 × 763 × 282 mm, 52 kg

Monitoring

LCD; Wi-Fi logger, RS485 and CAN

Deye makes more than one version at some sizes (for example a 10 kW with 2 MPPTs). Your quotation names the exact model.

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

Models

12 kW LV: SUN-12K-SG04LP3-EU; 20 kW LV: SUN-20K-SG05LP3-EU-SM2; 20 kW HV: SUN-20K-SG01HP3-EU-AM2

AC output

12 kW / 13.2 kVA or 20 kW / 22 kVA; three-phase 230/400 V, 50/60 Hz; unbalanced output; grid pass-through 45 A (12 kW), 70 A (20 kW LV), 80 A (20 kW HV)

Surge

2 × rated power for 10 s (LV); 1.5 × for 10 s (HV)

PV input

LV: max. 800 V, MPPT 200–650 V (12 kW) or 160–650 V (20 kW), 2 MPPTs. HV: max. 1000 V, MPPT 150–850 V, 2 MPPTs (26 + 26 A)

Battery

LV: 48 V systems (40–60 V), lithium or lead-acid, max. 240 A (12 kW) or 350 A (20 kW). HV: lithium only, 160–700 V

Efficiency

Max. 97.6 %; Euro 97.0 %

Parallel

Up to 10 units

Protection

IP65; −40 to +60 °C (derates above 45 °C); Type II DC/AC surge protection; Wi-Fi, RS485, CAN

Size and weight

12 kW: 422 × 699 × 279 mm, 33.6 kg; 20 kW LV: 456 × 750 × 269 mm, 51.9 kg; 20 kW HV: 408 × 638 × 237 mm, 30.5 kg

The HV model needs a compatible high-voltage lithium battery. Your quotation names the exact model.

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

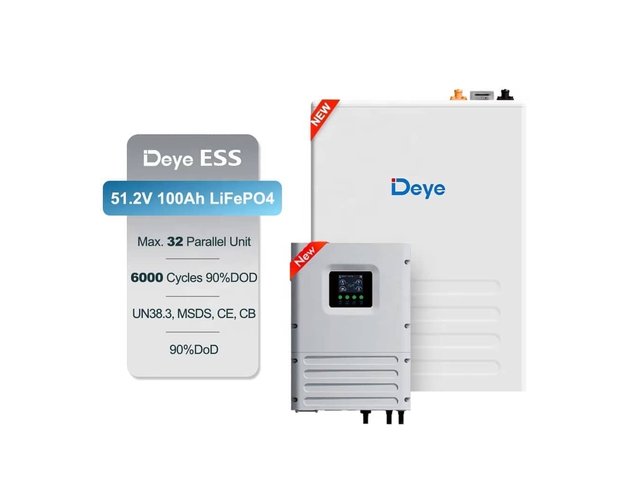

Models

AM1: SUN-6K-OG02LP1-EU-AM1 (1 MPPT); AM2: SUN-6K-OG01LP1-EU-AM2 (2 MPPTs)

AC output

6 kW, 230 V single-phase, pure sine wave, 50/60 Hz

Surge

2 × rated power for 10 s

PV input

Start-up 125 V; MPPT 150–425 V; max. PV power 9.6 kW. AM1: max. 450 V, 1 MPPT, 36 A. AM2: max. 500 V, 2 MPPTs, 18 + 18 A

Battery

48 V systems (40–60 V), lithium or lead-acid; max. charge/discharge 135 A

Grid / generator

35 A input; charges the battery from grid or generator

Efficiency

Max. 97.6 %; Euro 96.5 %

Protection

IP65; −40 to +60 °C (derates above 45 °C)

Communication

AM1: Wi-Fi, RS485, CAN. AM2: RS485, RS232, CAN, optional Wi-Fi/4G logger; up to 16 in parallel

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

Model

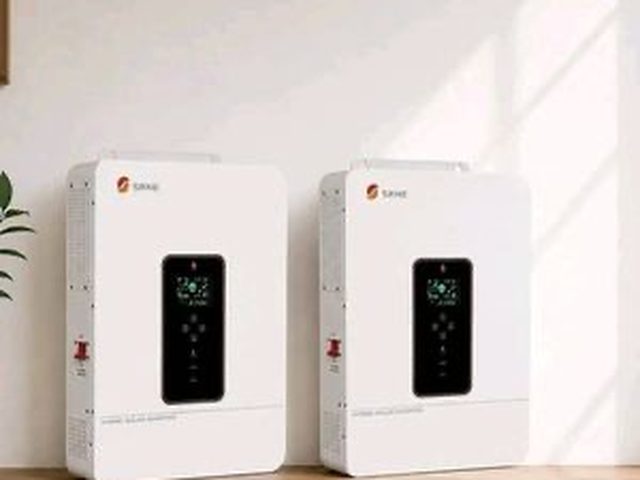

SRNE ASF48100S200-H (10 kW, 48 V). The hybrid ASP48100S200-H and HESP48100S200-H have the same PV and battery ratings

AC output

10 kW, 230 V single-phase, pure sine wave, 50/60 Hz

Surge

20 kVA peak; starts motors up to 6 HP

PV input

2 MPPTs; max. 500 V open-circuit each; MPPT 125–425 V; 22 + 22 A; up to 5.5 + 5.5 kW

Battery

48 V (40–60 V), lithium, lead-acid or user-defined; max. charge 200 A (solar), 120 A (grid/generator)

Transfer time

10 ms typical

AC input

90–275 V AC, 50/60 Hz; bypass current 63 A

Installation

Indoor only (IP20); −10 to +55 °C (derates above 45 °C); 620 × 445 × 130 mm, 27 kg

Communication

RS485, CAN, USB, dry contact; optional Wi-Fi or GPRS module

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

Models

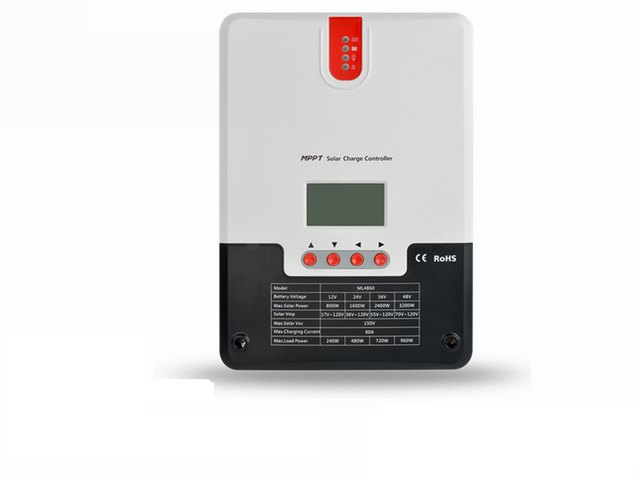

20 A 12/24 V: ML2420. 30 A 12/24/36/48 V: ML4830N15. 40 A 12/24 V: ML2440. 60 A 12/24 V: MA2460N15. 40 A 12/24/36/48 V: ask us for the model

Max. PV voltage (Voc)

100 V (ML2420, ML2440); 145 V (ML4830N15); 150 V (MA2460N15)

Max. PV power

ML2420: 260 W at 12 V, 520 W at 24 V; ML2440: 550 / 1100 W; ML4830N15: 400 / 800 / 1200 / 1600 W at 12/24/36/48 V; MA2460N15: 800 / 1600 W

Batteries

Lead-acid (flooded, sealed, gel), lithium or user-defined; system voltage detected automatically

Charging

MPPT bulk, boost, float; periodic equalising for lead-acid

Load output

20 A (ML series); 40 A (MA2460N15); light, light + timer and manual modes

Efficiency

MPPT tracking above 99 %; charge conversion up to 98 %

Display and communication

LCD; RS232 or RS485; optional Bluetooth and remote display

Check the panels' open-circuit voltage at the coldest morning against the controller's maximum PV voltage.

Named models: from the manufacturer's datasheet. Other options: typical values for the type. Your quotation names the exact model.

Models

5 and 8 kW: S6-EH1P5K-L-PLUS and S6-EH1P8K-L-PLUS. 12 and 16 kW: S6-EH1P12K03-NV-YD-L and S6-EH1P16K03-NV-YD-L

AC output

5 / 8 / 12 / 16 kW rated (grid and backup), 220/230 V single-phase, 50/60 Hz

Surge

2 × rated power for 10 s (backup)

PV input

5–8 kW: max. 500 V, MPPT 90–435 V, 2 MPPTs. 12–16 kW: max. 550 V, MPPT 80–520 V, 3 MPPTs (40 A each)

Battery

48 V (40–60 V), lithium or lead-acid; max. charge/discharge 112 A (5 kW), 190 A (8 kW), 250 A (12 kW), 290 A (16 kW)

Transfer time

Under 4 ms (5–8 kW); under 10 ms (12–16 kW)

Efficiency

Max. 97.5 % (5–8 kW); max. 97.6 % (12–16 kW)

Protection

IP66; AFCI (5–8 kW, optional on 12–16 kW); RS485, CAN, optional Wi-Fi / cellular / LAN

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

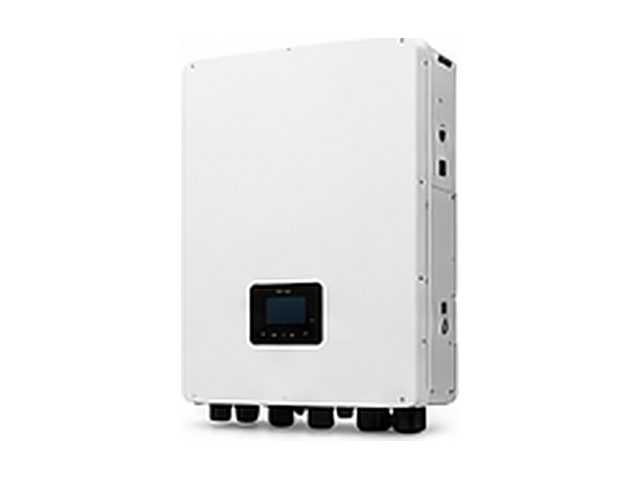

Model

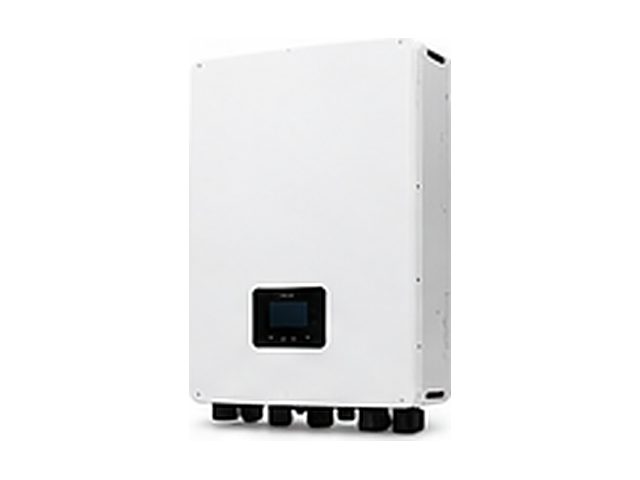

Solis S6-EO1P5K-48

AC output

5 kW, 230 V single-phase, pure sine wave, 50/60 Hz

Surge

10 kVA

PV input

Max. 500 V; start-up 90 V; MPPT 90–430 V; 1 MPPT; max. solar charge 100 A

Battery

48 V, lithium or lead-acid; max. charge/discharge 100 A

AC / generator charging

Up to 80 A; generator start/stop control

Transfer time

10 ms typical (20 ms max.)

Parallel

Up to 6 units, single- or three-phase (max. 30 kW)

Installation

Indoor (IP21); AFCI; LCD; CAN, RS485, Bluetooth, optional Wi-Fi

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

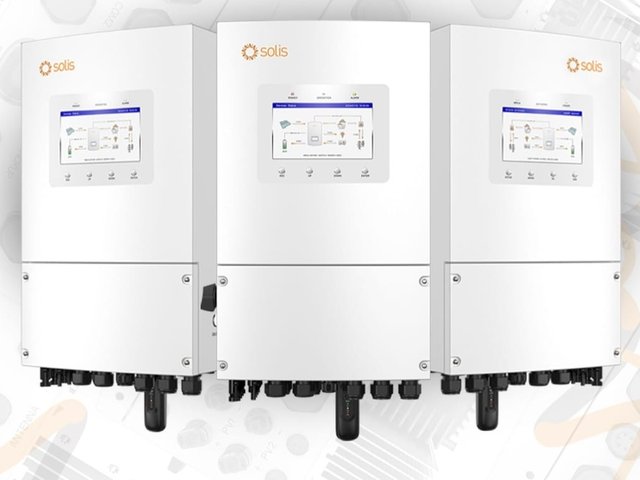

Models

15 kW: S6-EH3P15K02-NV-YD-L (48 V battery). 30 and 50 kW: S6-EH3P30K-H and S6-EH3P50K-H (high-voltage battery)

AC output

15 / 30 / 50 kW, three-phase 230/400 V; backup port at full rating; 15 kW supports unbalanced loads

Surge

15 kW: 2 × rated for 10 s; 30/50 kW: 1.6 × rated for 2 s

PV input

Max. 1000 V. 15 kW: MPPT 200–850 V, 2 MPPTs (40 A each). 30/50 kW: MPPT 150–850 V, 3 / 4 MPPTs (40 A each)

Battery

15 kW: 48 V (40–60 V), lithium or lead-acid, max. 290 A. 30/50 kW: lithium only, 150–800 V, 2 inputs × 70 A

Transfer time

Under 10 ms

Efficiency

Max. 97.6 % (15 kW); max. 97.8 % (30/50 kW)

Protection

IP66; up to 6 in parallel; CAN, RS485, Ethernet, optional Wi-Fi / cellular

Size and weight

15 kW: 430 × 660 × 295 mm, 42 kg; 30/50 kW: 530 × 880 × 290 mm, 73 kg

The 30 and 50 kW models need a compatible high-voltage lithium battery.

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

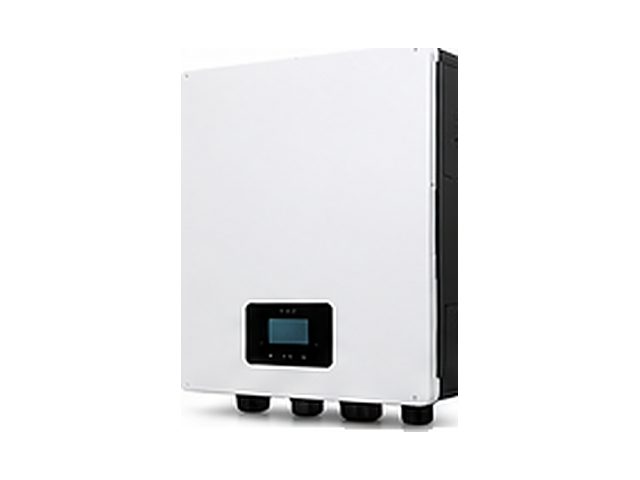

Type

All-in-one inverter: inverter, MPPT solar charger and battery charger in one unit

Sizes

3 kW, 6.2 kW and 11 kW

Output

230 V single-phase, pure sine wave

Battery

Typically 24 V on 3 kW-class units and 48 V on 6.2 and 11 kW-class units; lithium or lead-acid

PV input

Max. PV voltage and number of MPPTs vary by model; we design strings from the unit's datasheet

Installation

Typically indoor wall mounting with clearance for cooling

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Models

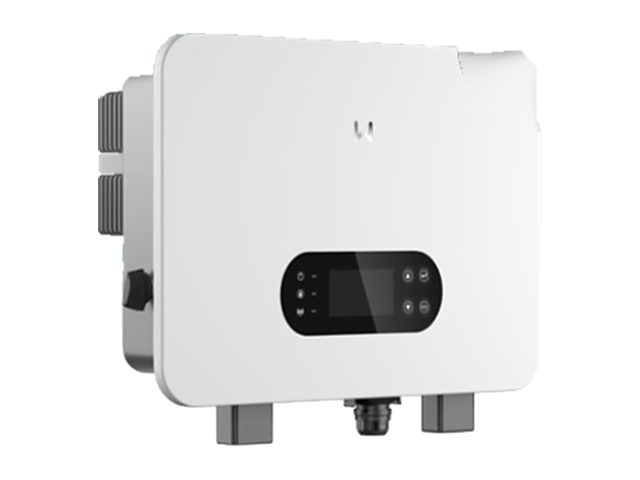

GW3000, GW3600, GW5000, GW6000, GW8000, GW10K and GW12K (ES-C10): 3, 3.6, 5, 6, 8, 10 and 12 kW

Battery

48 V nominal (40–60 V), lithium-ion or lead-acid, CAN BMS communication. Max. charge/discharge current 70 A (3 kW) to 240 A (12 kW). Works with GoodWe Lynx A and Lynx U and other brands

PV input

Up to 200 % oversizing: 6 kW (3 kW model) to 24 kW (12 kW model). Max. 600 V, MPPT range 60–550 V, start-up 58 V. 1 MPPT on the 3 kW model, 2 MPPTs on 3.6–12 kW; 20 A per MPPT (32 A on 8–12 kW)

Backup output

Rated kVA continuous, 110 % max., and 200 % for 10 seconds (e.g. 5 kW model: 5.5 kVA, 10 kVA for 10 s). Switches to backup in under 4 ms

Grid & generator

220/230/240 V, 50/60 Hz. 3-in-1 port for a generator, smart loads or an on-grid inverter

Parallel

On- and off-grid parallel operation of up to 6 units

Efficiency

97.6 % max., 96.2 % European; 95.5 % battery to AC

Protection

IP66; DC and AC Type III surge protection; DC switch, residual current and insulation monitoring built in; AFCI and rapid shutdown optional

Monitoring

LCD, Wi-Fi, LAN and Bluetooth with the app; RS485

Size & weight

3–6 kW: 560 × 415 × 204 mm, 14.5–15.5 kg, natural cooling. 8–12 kW: 560 × 444.5 × 226 mm, 27–29 kg, smart fan cooling

Environment

−35 to +60 °C; up to 3,000 m altitude

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

Backup

UPS-level seamless switching

Battery voltage

160–1000 V, for a broad range of batteries

PV inputs

8 or 10 MPPTs

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

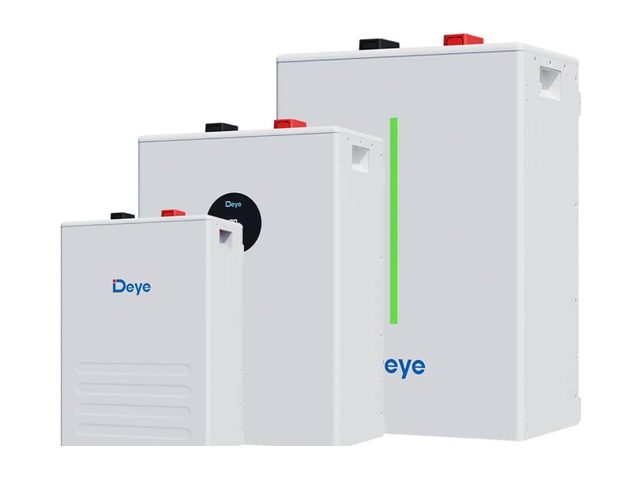

Models

SE-F5, SE-G5.1 Pro-B, SE-F12, SE-F16

Capacity

SE-F5 and SE-G5.1 Pro-B: 100 Ah, 5.12 kWh; SE-F12: 230 Ah, about 11.8 kWh; SE-F16: 314 Ah, about 16.1 kWh

Chemistry and voltage

LiFePO4, 51.2 V nominal; 44.8–57.6 V (SE-G5.1 Pro-B: 43.2–57.6 V)

Max. continuous current

SE-F5: 120 A discharge; SE-G5.1 Pro-B: 100 A; SE-F12: 230 A discharge; SE-F16: 160 A charge, 230 A discharge

Cycle life

6000 cycles or more at 25 °C (80 % DoD for SE-F5/SE-F12; 90 % DoD for SE-G5.1 Pro-B)

Parallel

Up to 32 units

Communication

CAN and RS485 (SE-F also Bluetooth app)

Temperature and IP

Charge 0–55 °C, discharge −20–55 °C; IP21 (SE-F), IP20 (SE-G5.1 Pro-B)

Size and weight

SE-F5: 370 × 548 × 140 mm, 41 kg; SE-G5.1 Pro-B: 440 × 133 × 540 mm, 45 kg; SE-F12: about 400 × 560 × 233 mm, 84 kg; SE-F16: 400 × 708 × 233 mm, 109 kg

Deye revises these models; your quotation confirms the version supplied.

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

Model

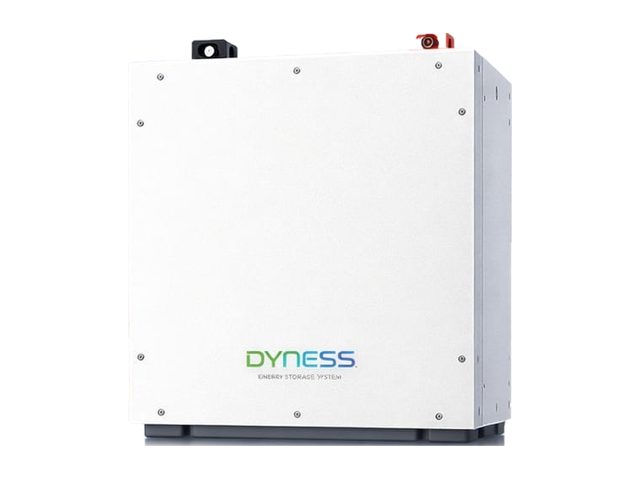

Dyness DL5.0C: LiFePO4, 51.2 V, 100 Ah, 5.12 kWh

Voltage range and DoD

44.8–57.6 V; 90 % depth of discharge (about 4.6 kWh usable)

Current

Recommended 50 A (0.5C); max. 100 A charge and discharge; peak 110 A for 15 s

Cycle life

6000 cycles or more (0.2C, 25 °C, 80 % DoD)

Parallel

Up to 50 units

Communication

CAN, RS485, RS232; listed for Deye, Solis, GoodWe, Victron, SMA, Voltronic, Sungrow and others

Temperature and IP

Charge 0–55 °C; discharge −20–55 °C; IP20; wall, floor or stacked

Size and weight

558 × 545 × 150 mm; about 50–54 kg

Certifications

UN38.3, CE-EMC, IEC 62619

Warranty

7 years from the manufacturer; terms confirmed in your quotation

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

Model

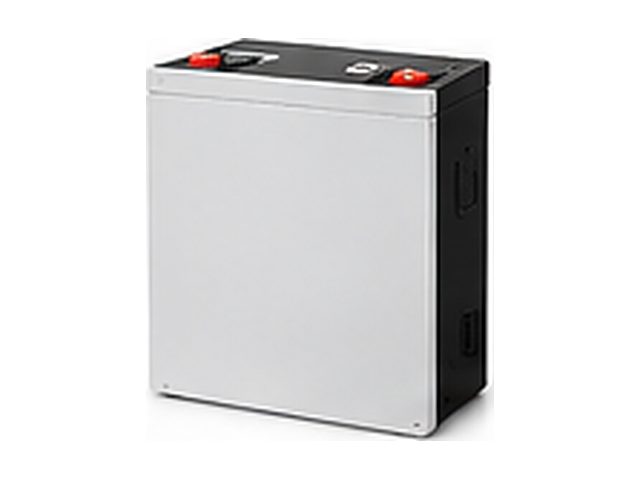

Dyness DL2.5: LiFePO4, 25.6 V, 100 Ah, 2.56 kWh

Charge voltage and DoD

28.5 V; 95 % depth of discharge (about 2.4 kWh usable)

Charge current

50 A recommended; 75 A max. (up to 40 min)

Discharge current

50 A recommended; 130 A max. (up to 30 min)

Parallel

Up to 16 units (40.96 kWh)

Communication

CAN, RS485; optional Wi-Fi

Temperature and IP

Charge 0–55 °C; discharge −20–55 °C; IP20

Size and weight

481 × 221 × 133 mm; 23 kg

Size continuous loads on the 50 A recommended current (about 1.2 kW).

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

Chemistry

LiFePO4 (lithium iron phosphate)

Voltage

48 V class: typically 51.2 V nominal, about 44.8–57.6 V

Capacity

314 Ah; about 15 to 16 kWh nominal

Usable energy

Typically 90 to 95 % depth of discharge

Current

Set by the battery's BMS; packs of this size are commonly rated about 160–230 A continuous. We match it to your inverter

Communication

Typically CAN and RS485 for closed-loop control with the inverter

Weight

Packs of this size typically weigh 110–120 kg: plan floor or wall support

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

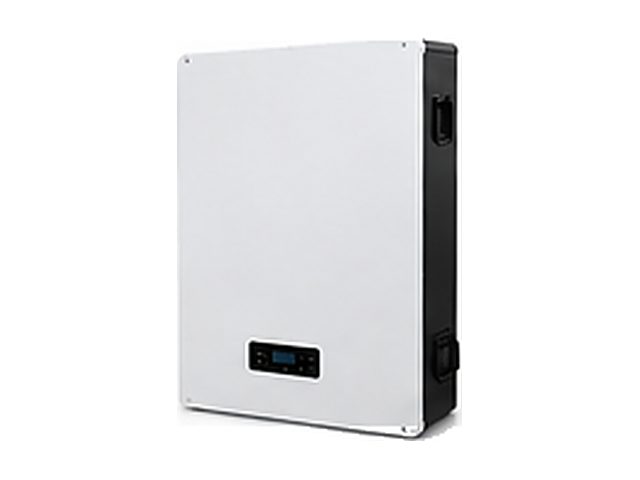

Chemistry

LiFePO4 (lithium iron phosphate)

Energy

51 V 100 Ah: about 5.1 kWh; 48 V 120 Ah: about 5.8–6.1 kWh; 51.2 V 200 Ah: about 10.2 kWh; 51 V 300 Ah: about 15.4 kWh

Voltage range

51.2 V packs typically 44.8–57.6 V; check the 48 V 120 Ah pack's range on its label

Current

Set by the BMS: 100 Ah packs commonly 100 A; 200–300 Ah packs commonly 150–200 A

Communication

Commonly CAN and RS485 for closed-loop control with the inverter

Cycle life

Typically 6000 cycles class for LiFePO4 wall batteries; confirmed on the datasheet supplied

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Chemistry

LiFePO4 (lithium iron phosphate)

Voltage

25.6 V nominal; typically about 22.4–28.8 V; charge voltage typically 28.4–28.8 V

Capacity

100 Ah; about 2.4–2.6 kWh

Usable energy

Typically 90 to 95 % depth of discharge

Current

Set by the BMS: commonly 50 A recommended and 100 A max. (about 2.5 kW)

Communication

Some 24 V packs have CAN/RS485, others charge by voltage only; we check it against your inverter

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Model

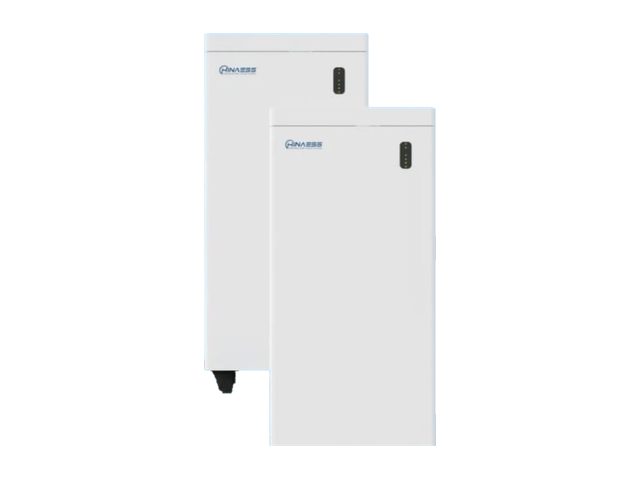

HINAESS PowerGem Max: LiFePO4, 51.2 V, 314 Ah, 16.08 kWh

Charge voltage and DoD

57.2 V; 90 % depth of discharge (about 14.5 kWh usable)

Charge current

160 A continuous; 180 A peak (15 s)

Discharge current

200 A continuous; 210 A peak (2 min)

Cycle life

8000 cycles (25 °C, 90 % DoD, 0.5C)

Parallel and communication

Up to 35 units; CAN, RS485; listed for Deye, Victron, Growatt, GoodWe, SRNE, MUST and others

Environment

−20 to +55 °C; IP20

Size and weight

900 × 445 × 230 mm; 120 kg; floor-standing, stacked or wall-mounted

Certifications and warranty

CE, UN38.3, IEC 62619; 10 years or 8000 cycles

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

System

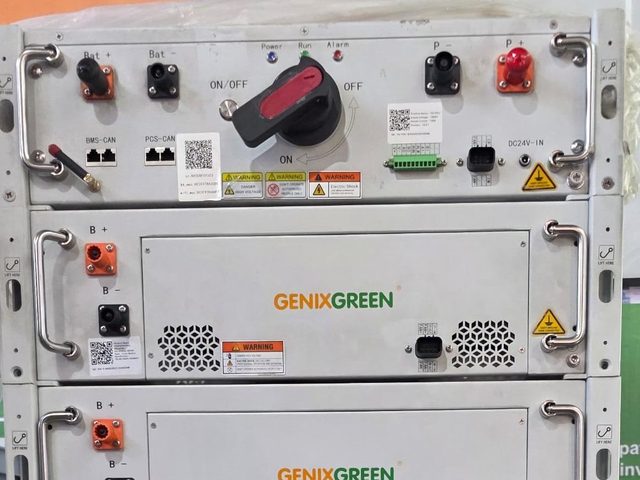

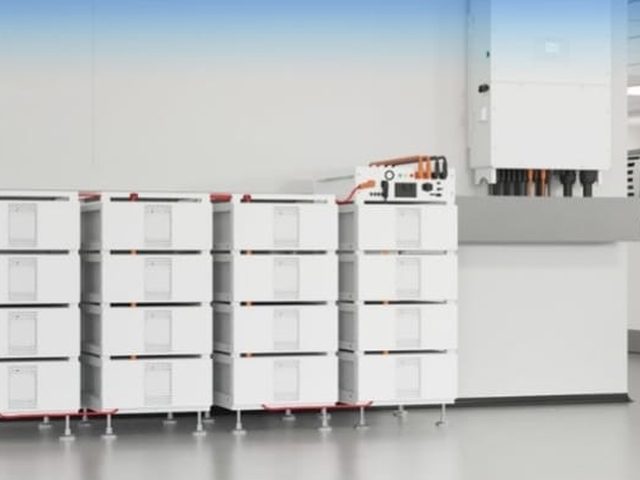

About 215 kWh high-voltage LiFePO4 battery with a Megarevo 100 kW three-phase inverter (PCS)

Battery voltage

High-voltage string, typically 768 V nominal (about 672–864 V)

Battery cabinet

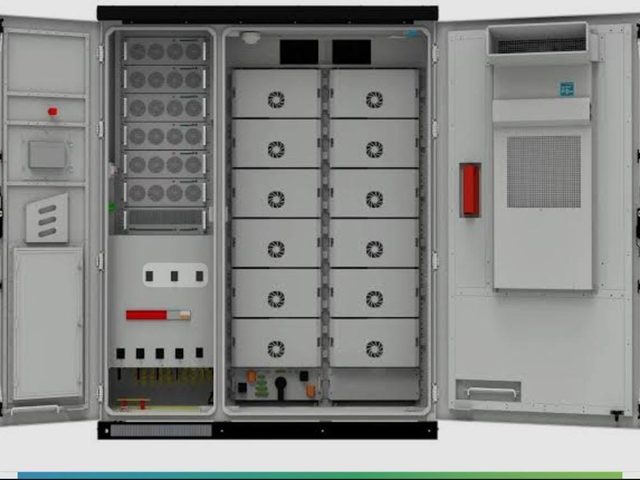

Outdoor all-in-one cabinet class: typically IP55, cooling, built-in fire suppression, BMS over CAN

Inverter

Megarevo MPS0100 class: 100 kW rated, 110 kW max.; 400 V three-phase, 50/60 Hz; battery input 420–950 V

Solar input

MPS0100: 2 or 3 MPPT modules, 250–1000 V

Cycle life

Typically 8000 cycles or more at 80 % DoD (GenixGreen 768 V range)

Monitoring

BMS and energy management over CAN, RS485 and Ethernet

Commercial systems are engineered for each site; the design and quotation name the exact cabinet and inverter models.

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

71 kWh model

Tower-X-HV-716V100Ah: 7 × 102.4 V / 100 Ah (10.24 kWh) LiFePO4 modules in series; 716.8 V, 71.68 kWh

Operating voltage

627.2–806.4 V (7 modules)

Current

Rated 50 A (0.5C); max. 100 A (1C); 115 A for 10 s

Cycle life and DoD

8000 cycles or more (25 °C, 0.5C, 80 % DoD); 90 % recommended DoD

Expansion

Modular from 3 to 7 modules (30.72–71.68 kWh); clusters in parallel

Communication

CAN 2.0 BMS; Wi-Fi remote monitoring

Environment

Indoor, IP20; −10 to +55 °C; fan cooled

Size and weight

7 modules: 577 × 800 × 1380 mm, 670 kg

100 kWh model

Ask us for the datasheet of the 100 kWh rack

Needs a high-voltage hybrid inverter whose battery input covers the full string voltage; not for 48 V inverters.

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

Chemistry

LiFePO4 (lithium iron phosphate)

Configuration

High-voltage (modules in series) or 48 V (modules in parallel) depending on the model; this decides which inverter it works with

Current

Typically 0.5C rated, up to 1C

Cycle life

Typically 6000 cycles or more at 80 % DoD (Dyness commercial range)

Communication

CAN / RS485 to the inverter; Ethernet or 4G monitoring on cabinet models

Installation

Indoor rack (IP20) or outdoor cabinet (IP55, cooling and fire suppression) depending on model

Commercial batteries are matched to the inverter in the design; the quotation names the exact model.

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Module

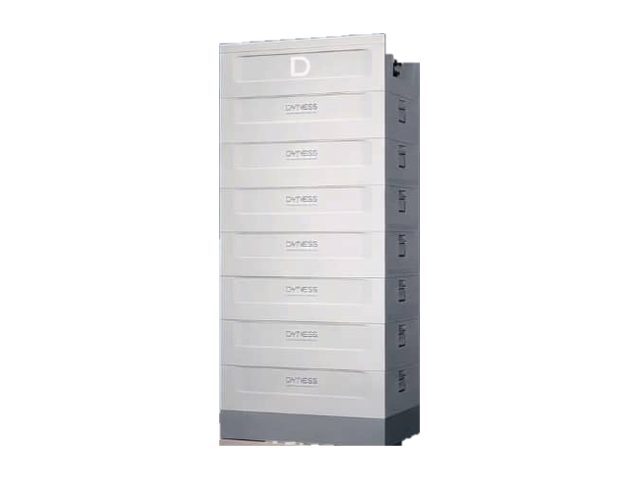

LiFePO4, 51.2 V / 100 Ah (5.12 kWh); 47 kg

Stack

3 to 15 modules in series: 15.36–76.8 kWh; 153.6–768 V nominal; 134–864 V operating

Current

Recommended 50 A (0.5C); max. 100 A (1C); peak 125 A for 2 min

Cycle life

8000 cycles or more (0.2C, 25 °C, 95 % DoD)

Expansion

Up to 12 stacks in parallel

Communication

CAN, RS485; built-in Wi-Fi with app updates

Environment and safety

Charge 0–55 °C; discharge −20–55 °C; IP20; self-heating; aerosol fire extinguisher

Certifications

CE, IEC 62619, IEC 63056, IEC 62477, IEC 62040, UN38.3

Works with Dyness-approved high-voltage inverters whose battery input covers the stack voltage.

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

0.75 HP

500 W · 30–96 V DC · max head 45 m · max flow 3.0 m³/h · panels 2 × 440 W

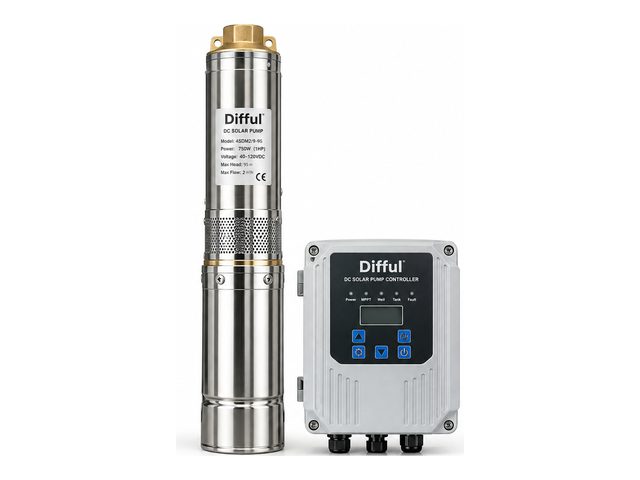

1 HP

750 W · 40–120 V DC · max head 95 m · max flow 2 m³/h · panels 2 × 590 W

1.5 HP

1100 W · 60–170 V DC · max head 123 m · max flow 4.5 m³/h · panels 3 × 590 W

2 HP

80–220 V DC · max head 180 m · max flow 5 m³/h · panels 4 × 590 W

From the supplier's product sheet. Your quotation names the exact model.

2 HP

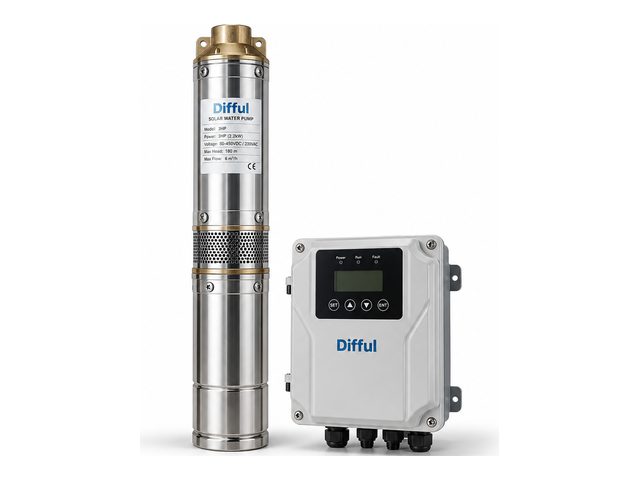

80–450 V DC / 230 V AC · max head 180 m · panels 5 × 590 W

3 HP

2.2 kW · 80–450 V DC / 230 V AC · max head 180 m · max flow 6 m³/h · panels 7 × 590 W

4 HP

80–450 V DC / 230 V AC · max head 230 m · panels 9 × 600 W

7 HP steel

5500 W · 520 V DC / 380 V AC · max head 135 m · panels 18 × 590 W

From the supplier's product sheet. Your quotation names the exact model.

Maker

Zhejiang Kepeida Pump Industry Co., Ltd (China)

Type

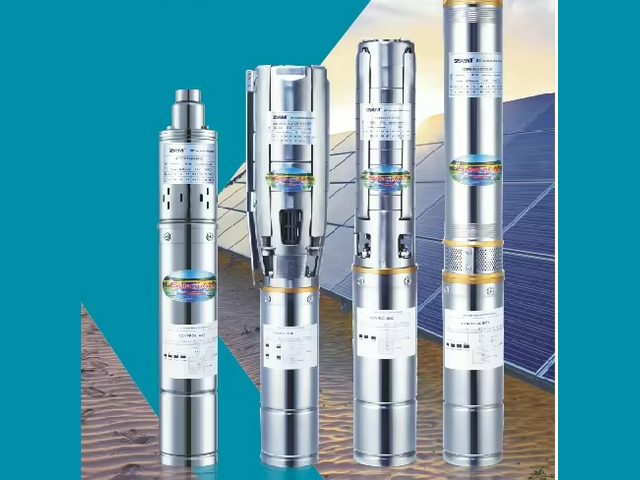

DC solar submersible borehole pump; stainless-steel body; several sizes

Motor and controller

Typically a brushless permanent-magnet DC motor with an MPPT pump controller

Protection

Typically dry-run, overload and over-voltage protection in the controller

Selection

Choose the model from its pump curve at your total dynamic head and daily water need; our water tool works this out

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Maker

Zhejiang Kepeida Pump Industry Co., Ltd (China)

Types

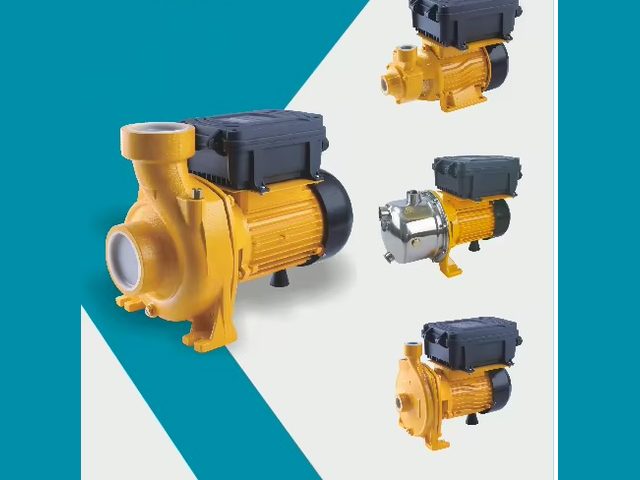

DC solar surface pumps: centrifugal, jet and peripheral

Motor

DC motor powered from solar panels

Suction

Surface pumps lift water only a few metres; keep the pump close to the water and the suction pipe short

Selection

Choose the model from its pump curve at your head and flow; we size the panels to the pump

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Models

Max. head, DC voltage and power: 65 m 24 V; 75 m 24 V 250 W; 85 m 60 V 600 W; 100 m 90 V 800 W; 135 m 120 V 1100 W

Type

DC solar borehole pump; high-head models are typically helical-rotor (screw) pumps with a brushless DC motor

Controller

MPPT pump controller, typically with dry-run, overload and low-light protection

Head

Figures are maximum head at zero flow; the working head should be well below it

Panels

Array voltage and power must suit the controller; we size the panels for the pump

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Models

Max. head, power and supply: 95 m 750 W (AC 220 V / DC 110 V); 100 m 800 W (DC 90 V); 125 m 1100 W (DC 150 V / AC 220 V); 135 m 1100 W (AC 220 V / DC 120 V); 185 m 1500 W (AC 220 V / DC 170 V)

Type

Solar borehole pump that also runs from 220 V AC (grid or generator) on AC/DC models

Controller

Hybrid AC/DC controller with MPPT, typically with dry-run and overload protection

Head

Figures are maximum head at zero flow; the working head should be well below it

Panels

Array voltage and power must suit the controller; we size the panels for the pump

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Pump

Submersible borehole pump sized from your pump-test yield, total dynamic head and daily water need

Controller

Solar VFD/MPPT controller with dry-run protection; AC input for grid or generator backup on AC/DC models

Rising main

HDPE (PE100) pipe sized to keep water velocity at about 1.5 m/s or less

Tank and stand

Polyethylene tank on a galvanised steel stand; every metre of height gives about 0.1 bar

Controls

Float switch or level sensor stops the pump when the tank is full

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Models

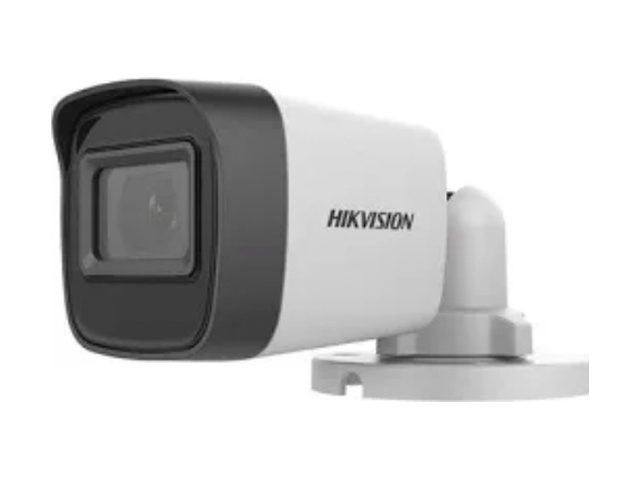

DS-2CE16D0T-EXIPF (2.8 mm). Outdoor 1080p bullet: typical Hikvision Turbo HD 2 MP values

Resolution

2 MP, 1920 × 1080 at 25/30 fps

Lens

EXIPF 2.8 mm: 96.5° horizontal; typical bullets 2.8, 3.6 or 6 mm

Night vision

EXIPF: Smart IR up to 20 m; typical Turbo HD bullets 20 to 50 m

Video output

EXIPF: switchable TVI / AHD / CVI / CVBS on one BNC

Power

12 V DC; EXIPF max. 3.3 W (typical models 2 to 6 W)

Weather rating

IP67; −40 to +60 °C

Turbo HD cameras need a compatible DVR or XVR, not an IP NVR.

Named models: from the manufacturer's datasheet. Other options: typical values for the type. Your quotation names the exact model.

Families

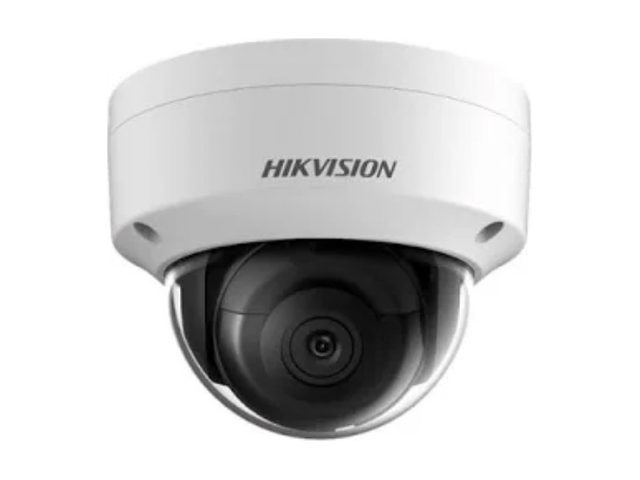

8 MP DarkFighter fixed dome (e.g. DS-2CD2186G2-I(SU)); 4 MP AcuSense dome (e.g. DS-2CD2143G2-I(S)); TandemVu 4 MP 25× PTZ (e.g. DS-2SE4C425MWG-E)

Resolution

8 MP: 3840 × 2160; 4 MP: 2688 × 1520; TandemVu: 4 MP PTZ channel plus a wide-angle channel

Lens and zoom

Domes 2.8 or 4 mm (about 103–111° at 2.8 mm); TandemVu 25× optical zoom, 360° pan

Night vision

Domes: IR up to 30 m; TandemVu: IR up to 100 m plus white light up to 30 m

Compression

H.265+ / H.265 / H.264+ / H.264

Power

Domes: 12 V DC or PoE (802.3af), about 6.5–9.5 W; TandemVu: 12 V DC or PoE+ (802.3at), up to 24 W

Weather rating

Domes: IP67, IK10; TandemVu: IP66 or IP67 by version

Smart features

AcuSense human and vehicle classification, line crossing and intrusion detection

The TandemVu needs a PoE+ (802.3at) port. Your quotation names the exact model.

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

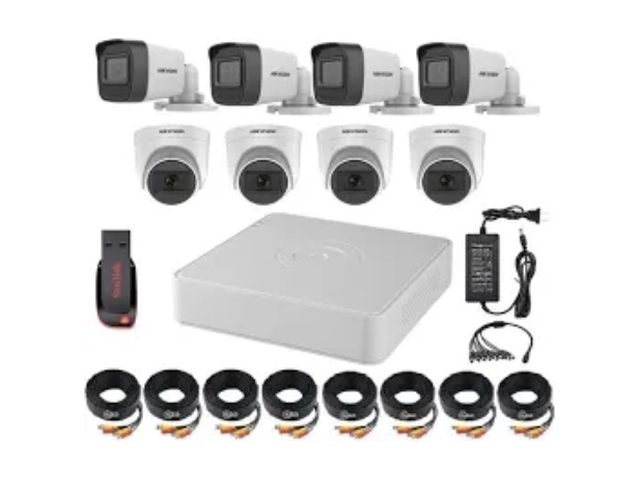

Contents

4- or 8-channel DVR/XVR, 4 or 8 HD-over-coax cameras, camera power supply; cables and connectors vary by kit

Cameras

2 MP (1920 × 1080) bullets or domes; Dahua Full-Color: warm LED light up to 20 m for colour at night; Hikvision: IR about 20–25 m

Recorder

Records HD-over-coax and some IP cameras; budget recorders often record at 1080N or 1080p Lite rather than full 1080p

Compression

H.265 / H.265+ (Smart H.265+ on Dahua, H.265 Pro+ on Hikvision)

Storage

One SATA hard drive bay (typically up to 6–10 TB); the drive is often not included

Viewing

HDMI and VGA outputs; phone app (Dahua DMSS or Hik-Connect)

Smart features

Human and vehicle alarm filtering on AI recorders

We confirm the recording resolution and whether a hard drive is included before you buy.

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Lenses

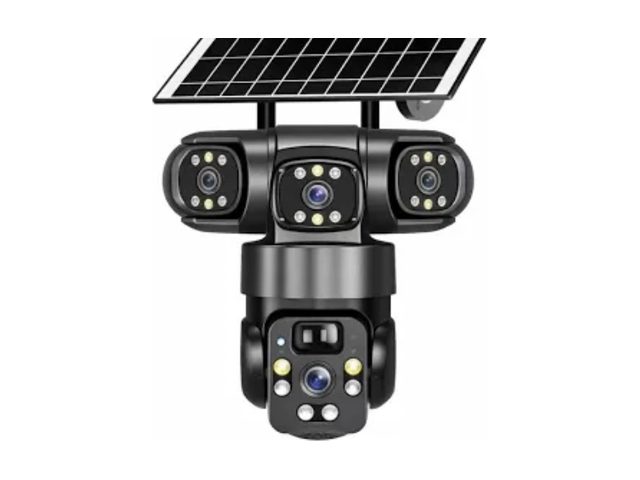

Usually 2 fixed wide-angle lenses plus 1 pan/tilt lens; "6 MP" usually means 3 × 2 MP sensors

Pan and tilt

About 355° pan and 90° tilt

Power

Solar panel typically 6–10 W with a built-in battery of about 30–45 Wh

Connectivity

4G LTE with a SIM card (data plan needed); some also have Wi-Fi

Detection and night vision

PIR human detection; IR or colour night mode, typically 10–40 m

Storage and audio

microSD card (commonly up to 128 GB) or cloud; two-way audio, often a siren

Weather rating

Typically IP65–IP66

These cameras record on motion, not 24 hours a day, and cloudy weeks shorten run time. We check that the 4G version works on local networks.

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

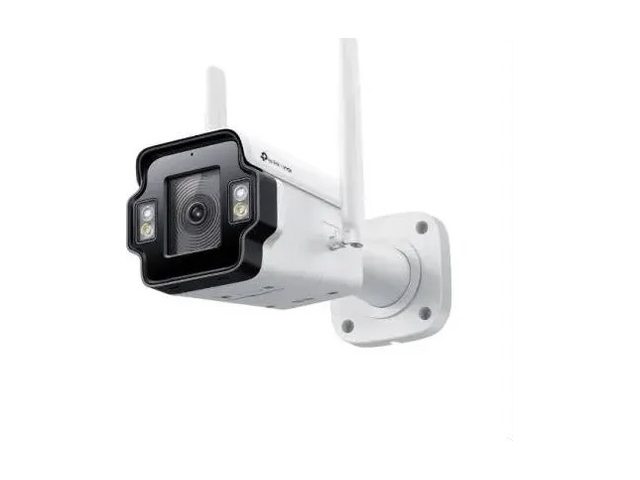

Models

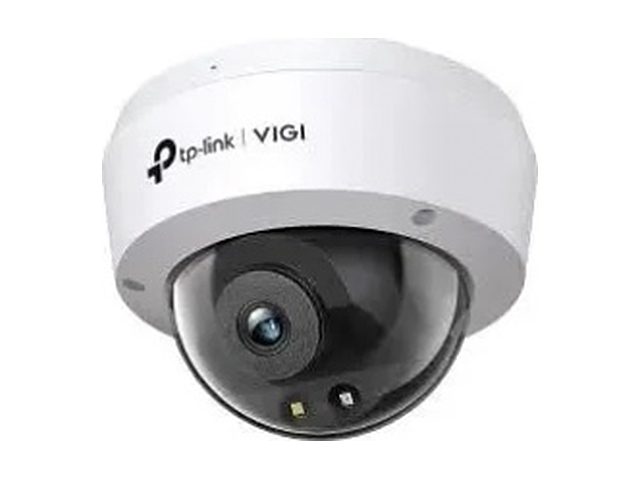

VIGI C220I, C240 (2.8 mm), InSight S225; other options: typical VIGI values

Resolution

C220I and S225: 2 MP (1920 × 1080); C240: 4 MP (2560 × 1440); other options as named

Lens

2.8 mm: C220I 88°, C240 96°, S225 99° horizontal; 4 mm versions also made

Night vision

C220I: IR 30 m (black and white). C240, S225 and Full-Colour models: IR plus white light 30 m (colour at night)

Compression

H.265+ / H.265 / H.264+ / H.264

Power

PoE (802.3af); max. 5.5 W (C220I), 6 W (C240), 6.7 W (S225); about 7 W for the EasyCam turret

Weather rating

C220I, C240, S225: IP67 and IK10; −30 to +60 °C

Storage and audio

C240: microSD up to 512 GB and microphone; S225: microphone; C220I records to the NVR only

Smart features

Human and vehicle classification, line crossing, intrusion and region detection

Named models: from the manufacturer's datasheet. Other options: typical values for the type. Your quotation names the exact model.

Models

VIGI InSight S385 (8 MP); other options: typical VIGI values

Resolution

IR bullet 2–4 MP; 3 MP 2304 × 1296; 4 MP 2560 × 1440; 5 MP 2880 × 1620; ColorPro 2688 × 1520; S385 3840 × 2160

Lens

Fixed 2.8, 4 or 6 mm; S385 2.8 or 4 mm; ColorPro F1.0 aperture

Night vision

IR bullet: IR 30–50 m (black and white); Full-Colour models and S385: IR plus white light 30 m; ColorPro: colour down to 0.0005 lux

Compression

H.265+ / H.265 / H.264+ / H.264

Power

PoE (802.3af/at) or 12 V DC; about 5–6 W (IR, 3 and 4 MP), 9–10.5 W (5 MP, ColorPro); S385 11.5 W

Weather rating

IP67 on most (some 4 MP versions IP66); −30 to +60 °C

Storage and audio

Full-Colour and ColorPro: microphone, most with microSD; S385: microSD up to 512 GB, two-way audio

Smart features

Human and vehicle classification, line crossing, intrusion; S385 adds loitering detection

Named models: from the manufacturer's datasheet. Other options: typical values for the type. Your quotation names the exact model.

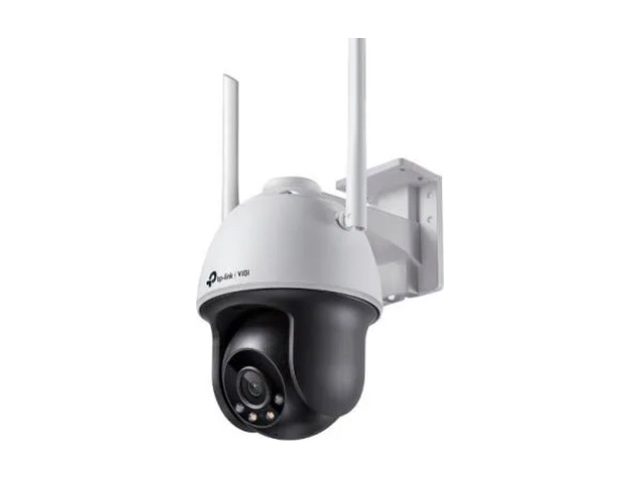

Models

VIGI C540S (4 MP ColorPro pan/tilt); other options: typical VIGI values

Resolution

4 MP (2560 × 1440 or 2688 × 1520)

Lens and coverage

4 mm fixed; pan/tilt about 350° pan, 105–120° tilt

Night vision

Full-Colour: IR plus white light 30 m; C540S: ColorPro, white light 30 m

Connectivity

Wi-Fi models: 2.4 GHz 802.11b/g/n; 4G bullet: LTE SIM; pan/tilt and C540S: wired Ethernet

Power

Wi-Fi models: 12 V DC (7–15 W); pan/tilt: PoE+ or 12 V DC (up to 14 W); C540S: PoE+ (802.3at) up to 16.5 W or 12 V DC

Weather rating

IP66; −30 to +60 °C

Storage and audio

microSD (256–512 GB); built-in microphone and speaker for two-way audio

Smart features

Human and vehicle classification, line crossing, intrusion; automatic tracking on pan/tilt

Pan/tilt cameras need PoE+ (802.3at) ports. We check that the 4G camera supports local network bands.

Named models: from the manufacturer's datasheet. Other options: typical values for the type. Your quotation names the exact model.

Cameras

2 to 8 MP IP cameras: 2 MP (1920 × 1080), 4 MP (2560 × 1440), 8 MP (3840 × 2160)

Compression

H.265 / H.265+ to cut bandwidth and storage

Recorder

4 to 64-channel NVR; total camera bitrate must stay within the NVR's incoming bandwidth

PoE

IEEE 802.3af for most fixed cameras; 802.3at (PoE+) for PTZ and pan/tilt cameras; within the switch's PoE budget

Cabling

Cat5e/Cat6, up to 100 m per camera run; outdoor-rated cable and surge protection outside

Storage

Surveillance-rated (24/7) hard drives; GB per camera per day ≈ bitrate in Mbps × 10.8

Remote viewing

Maker's phone app and web client, with strong passwords and firmware updates

Backup power

UPS for the NVR, PoE switch and router

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Specifications

Compact and portable. Built-in Wi-Fi 5 router, up to 112 m²; one Ethernet port with the Starlink Plug. 25–40 W average, 12–48 V DC input. Dish about 1.1 kg. IP67, −30 to 50 °C. Download speeds above 100 Mbps.

Service

The Starlink plan is paid to Starlink separately. Plan availability varies by area; we check yours before you buy.

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

Specifications

Homes, offices, farms and schools. Router 3 (Wi-Fi 6, up to 297 m², two Ethernet ports), 15 m Starlink cable and kickstand. 75–100 W average. IP67, 110° field of view, −30 to 50 °C. Figures from the Standard 4 X kit sheet.

Service

The Starlink plan is paid to Starlink separately. Plan availability varies by area; we check yours before you buy.

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

Specifications

Businesses, harsh and remote sites. No router included (use a business router). 25 m cable, 100–240 V AC or 12–56 V DC input, 75–100 W average. IP68 (IP69K with cables fitted), −40 to 60 °C, survives winds over 280 km/h. Download speeds up to 400+ Mbps.

Service

The Starlink plan is paid to Starlink separately. Plan availability varies by area; we check yours before you buy.

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

Model

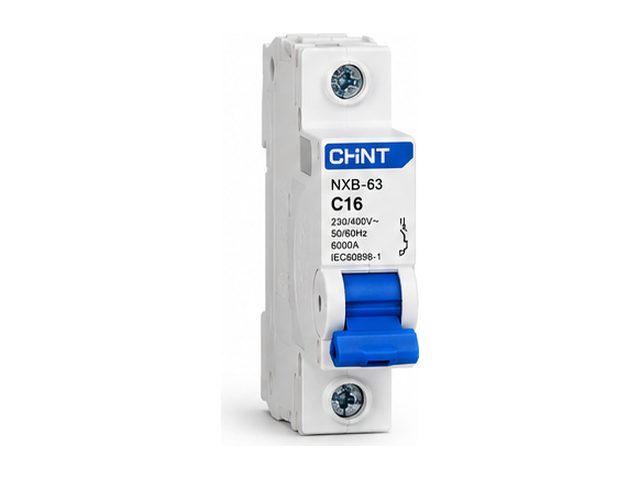

CHINT NXB-63, 1-pole, C curve: 2, 6, 10, 16 and 32 A

Standard

IEC/EN 60898-1

Rating

230–240 V AC, 50/60 Hz

Breaking capacity

6 kA (Icn and Ics)

Trip curve

C (magnetic trip at 5–10 × In)

Endurance

Electrical 10,000 operations; mechanical 20,000

Terminals

1–25 mm², 2.0 N·m

Operating temperature

−35 to +70 °C (calibrated at 30 °C)

Mounting

35 mm DIN rail; IP20 (IP40 in an enclosure)

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

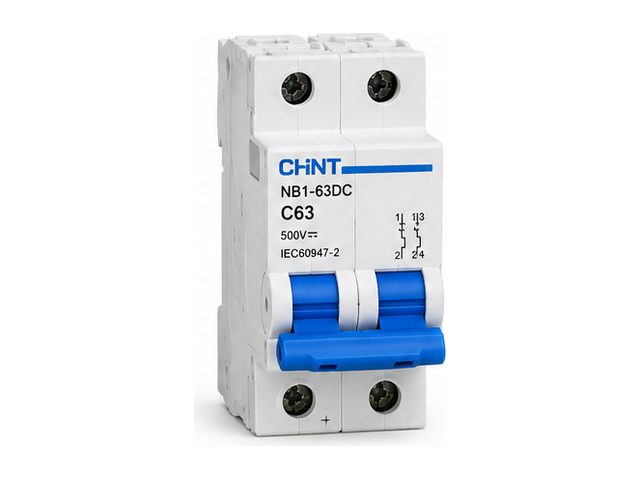

63 A: NB1-63DC

1-pole 250 V DC; 2-pole 500 V DC; Icu 6 kA; C curve

125 A: NXB-125

DC rating in CHINT's catalogue: 1-pole 110 V DC, 2-pole 220 V DC; Icu 10 kA

Polarity

NB1-63DC is polarised: connect + and − as marked

Standard

IEC/EN 60947-2

Endurance (NB1-63DC)

Electrical 1,500 operations; mechanical 20,000

Terminals

NB1-63DC up to 25 mm²; NXB-125 16–50 mm²

Operating temperature

−35 to +70 °C

The 125 A breakers suit 48 V battery circuits. For PV strings and high-voltage batteries we use a breaker or fuse rated for the full DC voltage.

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

Reference series

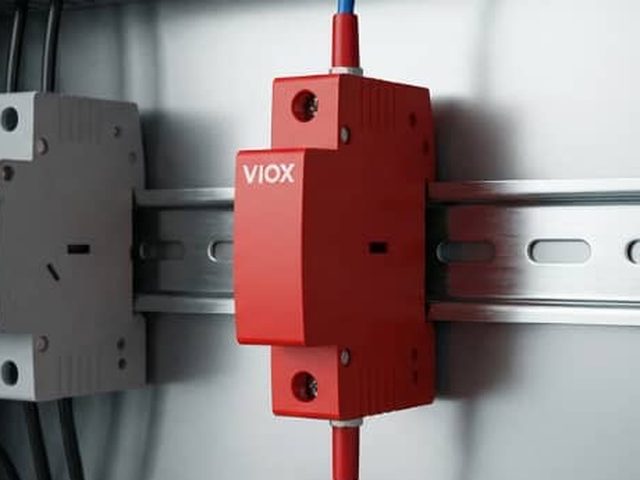

VIOX VSP1-C40 (AC) and VSP1-C40PV (DC)

AC Type 2

Uc 275 V AC (320 / 385 / 440 V versions); In 20 kA, Imax 40 kA (8/20 µs); Up 1.5 kV

DC (PV) Type 2

Ucpv 600 V or 1000 V DC (1500 V version); In 20 kA, Imax 40 kA; Up 2.2 kV (600 V) or 3.6 kV (1000 V)

Standards

AC: IEC 61643-11; DC: IEC 61643-31 / EN 50539-11

Construction

35 mm DIN rail; plug-in replaceable modules; optional remote-signal contact

AC back-up fuse

125 A gG

The DC surge protector's voltage must be at least the PV array's open-circuit voltage on the coldest morning.

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Function

Disconnects the load when the mains voltage goes outside safe limits, and reconnects after a delay

Rating

1 to 63 A, 230 V AC single-phase

Settings

Over- and under-voltage limits and reconnect delay adjustable on most models

Mounting

35 mm DIN rail

Use

Protects appliances, inverters and pumps from low or high voltage and from surges when power returns

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Type

Manual rotary changeover switch, positions I–0–II (break-before-make)

Rating

63 A, 230/400 V AC

Mounting

35 mm DIN rail

Use

Switches a circuit between grid and inverter (or generator); position 0 isolates both

Poles

2-pole for single-phase, 4-pole for three-phase; we confirm the version for your board

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Series

LWPV (Wenzhou Lierwei Electrical)

Size

10 × 38 mm cylindrical

Rated voltage

1000 V DC

Rated current

32 A

Class

gPV (for PV strings), IEC 60269-6

A string fuse must not exceed the panel's maximum series fuse rating (for example 20 A on the JA 455 W, 30 A on the Jinko 590 W). We choose the fuse rating from the panel datasheet.

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Type

Compact fire-extinguishing unit made to fit inside a distribution board

Purpose

Puts out a small fire inside the board before it spreads

Activation and agent

Depend on the model; the label gives the activation temperature, agent and service life

Fitting

Mounted inside the board as the maker's instructions show, clear of live terminals

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Type

Fuse holder (fuse base) for HRC fuse links

Versions

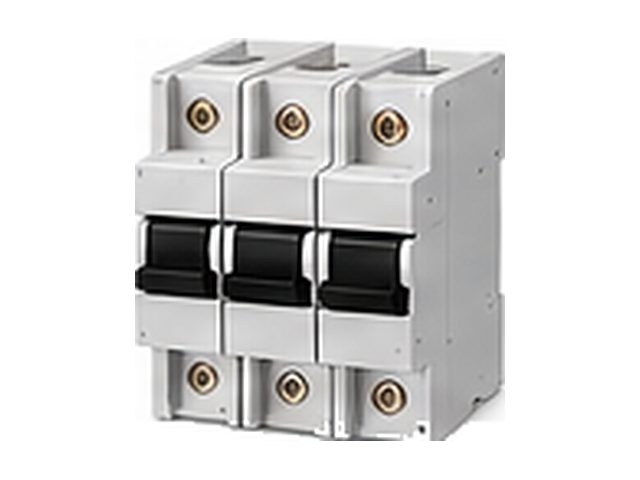

3-pole 250 A, 3-pole 160 A, 2-pole 160 A

Fuse size

Takes the fuse-link size marked on the holder; use matching links only

Voltage

Check the holder's AC or DC rating before using it on battery or PV circuits

Use

Protection and isolation of battery, inverter and distribution circuits

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Type

HRC (high rupturing capacity) fuse link

Ratings

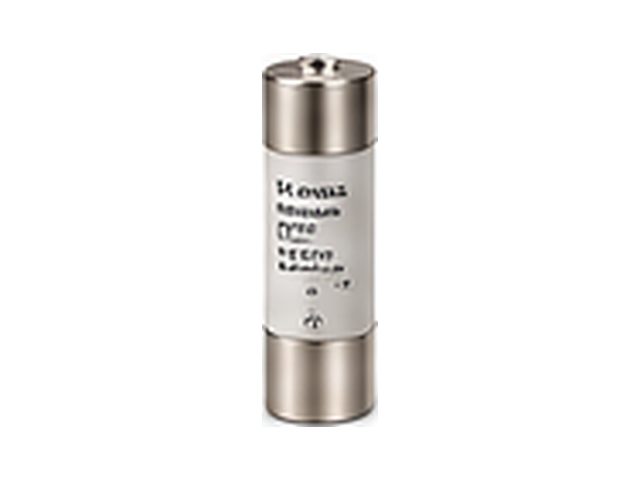

16, 100, 125, 160 and 250 A

Class

gG for general AC protection; DC-rated links (marked for DC or gPV) on battery and PV circuits

Fit

Must match the holder size

Selection

Above the circuit's design current and no higher than the cable's current rating

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Models

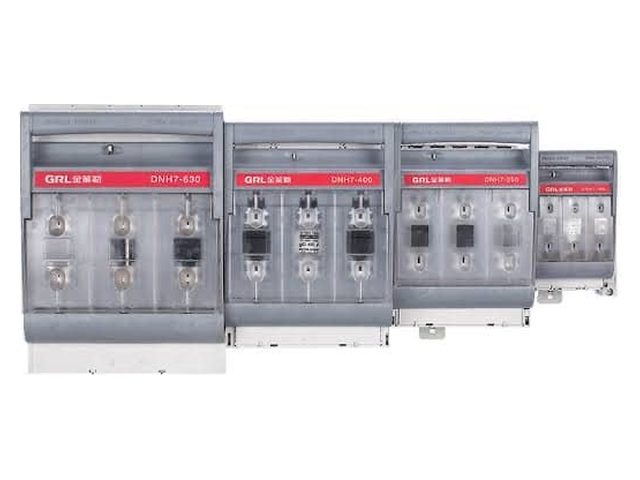

DNH7-250, DNH7-400, DNH7-630

Rated current

250 / 400 / 630 A at 400 V AC

Fuse links

NH1 (250), NH2 (400), NH3 (630), to IEC 60269-2

Rated voltage

Up to 690 V AC, 50/60 Hz; insulation voltage 1000 V

Poles and operation

3-pole; manual on-load switching by handle

Short-circuit

50 kA conditional (fuse-protected)

Power loss

23 / 34 / 48 W per phase without fuses

Enclosure

IP20 open, IP30 closed; fits 60 mm busbar systems

AC rated. GRL publishes no DC rating, so we don't use it for battery or PV isolation.

From the manufacturer's datasheet. Makers revise their models, so your quotation names the exact model.

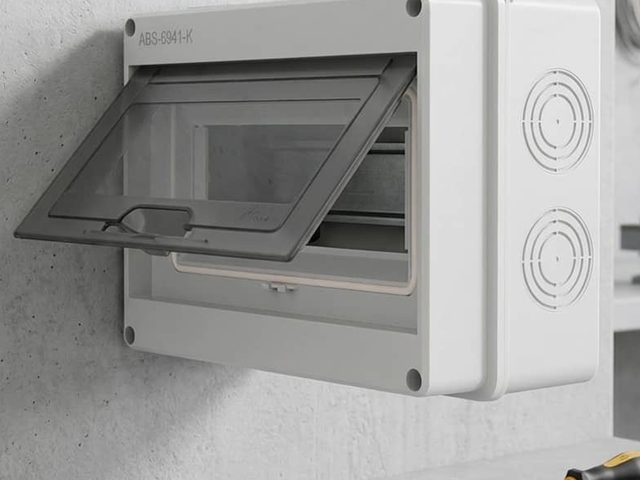

Model

ABS-6941-K

Material

ABS plastic

Cover

Hinged smoked transparent cover

Inside

35 mm DIN rail for breakers, surge protection and switches

Cable entry

Knock-outs on the sides

Outdoor use

Check the enclosure's IP rating before mounting outdoors; shade it from direct sun

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Standard

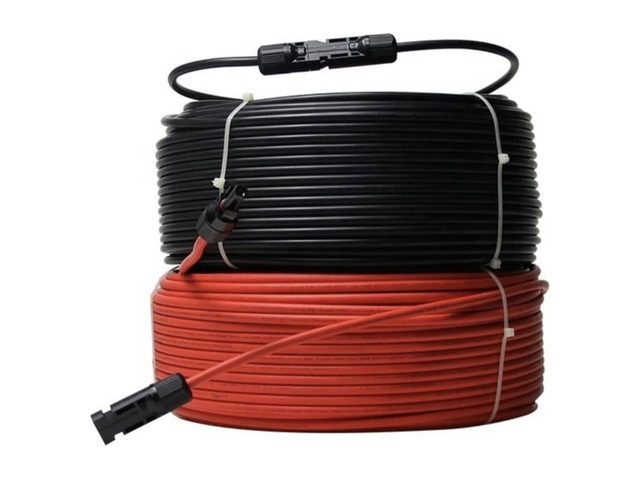

PV cable to EN 50618 / IEC 62930 (H1Z2Z2-K type)

Conductor

6 mm² tinned copper, fine-stranded (class 5)

Voltage

1.5 kV DC

Insulation

Double-insulated, halogen-free, UV- and ozone-resistant

Temperature

−40 to +90 °C operating

Colours

Red and black

Current

Depends on how it is installed and the temperature; we size it from the current and the voltage drop over the run

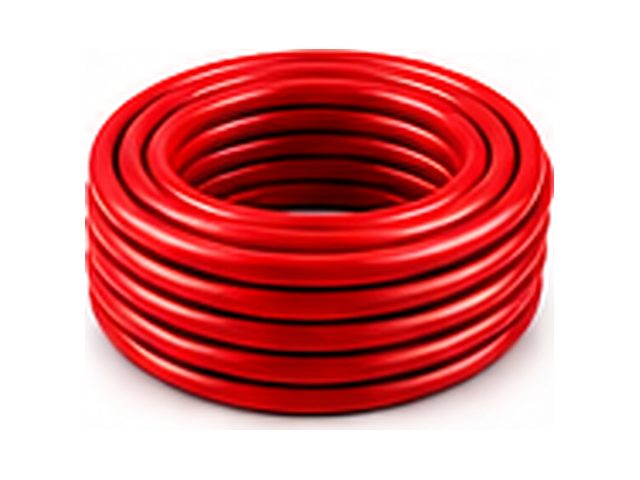

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Conductor

Fine-stranded flexible copper

Sizes

16, 25, 35 and 50 mm²

Colours

Red (+) and black (−)

Insulation

PVC or rubber; check the voltage and temperature rating printed on the cable

Use

Battery to inverter and between batteries; keep runs short and the + and − lengths equal

Terminations

Crimped tinned-copper lugs of the same size (for example SC35 on 35 mm²)

Sizing

From the inverter's maximum battery current, the run length and the fuse rating

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Type

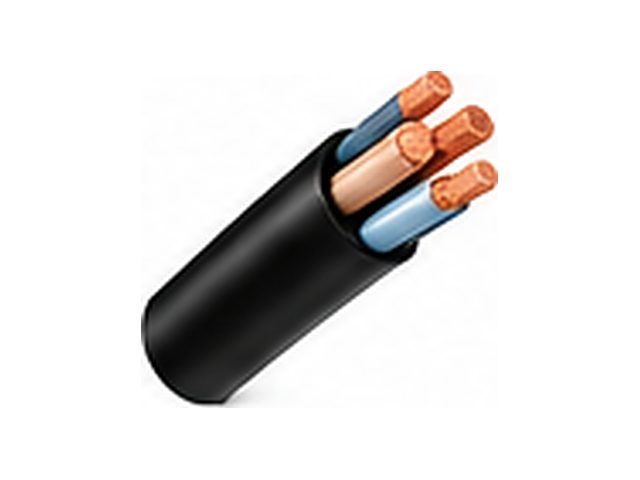

Multi-core flexible cable, PVC insulated and sheathed

Sizes

2.5 mm² 3- and 4-core; 6 and 10 mm² 4-core

Conductor

Stranded flexible copper

Voltage rating

Typically 300/500 V or 450/750 V; check the cable marking

Use

AC connections to equipment and between boards; run in conduit or trunking, not buried

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Type

SC tube lug, tinned copper

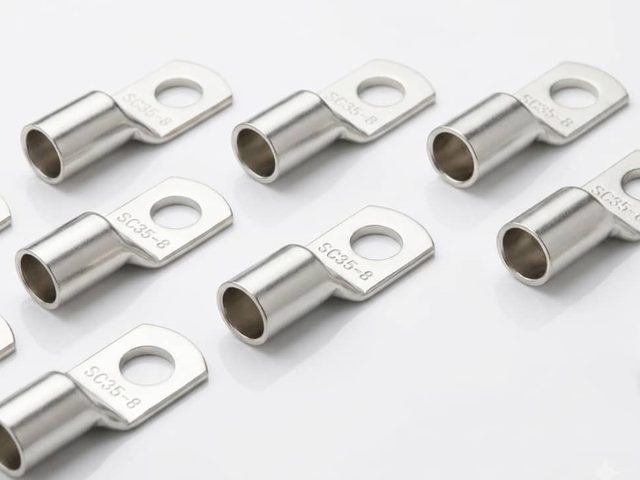

SC35-8

For 35 mm² cable, 8 mm (M8) stud hole

Fitting

Crimp with a hexagonal crimping tool sized for the lug; heat-shrink over the barrel

Other sizes

Lug size must match the cable size and the stud; other sizes on request

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Material

Typically nylon (polyamide)

Thread

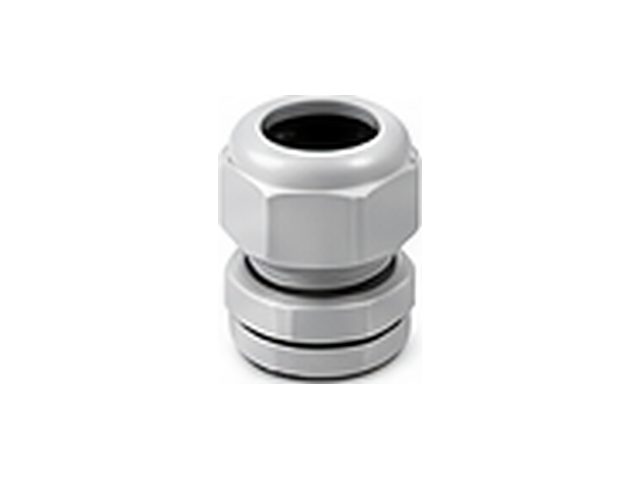

M20 and M32

Sealing

Typically IP68 when tightened on a cable within its clamping range

Clamping range

Marked on the gland; it must match the cable's outer diameter

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Type

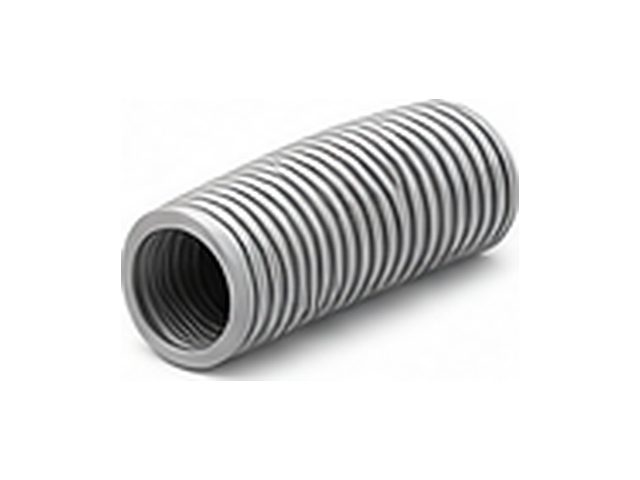

Corrugated flexible conduit

Sizes

19, 25 and 35 mm

Outdoor use

Use a UV-resistant grade in sunlight

Fittings

Matching connectors at boxes and enclosures keep the run sealed

Use

Protects cable runs to equipment and along walls and roofs

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Types

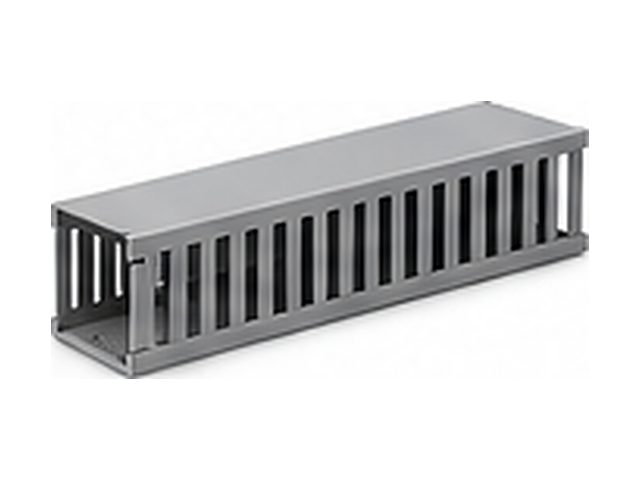

40 × 40 mm grey slotted wiring duct; 40 × 40 and 50 × 50 mm white surface trunking

Material

Self-extinguishing PVC

Lid

Clip-on cover

Use

Slotted duct inside boards and panels; white trunking for neat surface runs on walls

Fill

Leave spare space for heat and future cables

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Path bollard

Built-in solar panel, LED and lithium battery; switches on at dusk automatically

Security light

Solar panel with LED floodlight; motion-sensor and timer modes

Battery

Lithium, built in

Weather rating

Typically IP65 for outdoor use

Run time

Depends on panel size, battery capacity and sun hours; we size for winter sun

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Wi-Fi

Wi-Fi 6 (802.11ax) dual-band access points, ceiling or wall mounted

Switching

Managed PoE switches (IEEE 802.3af/at) powering access points and cameras

Cabling

Cat6 U/UTP, solid copper; up to 90 m per permanent link

Router

Business router with dual-WAN failover (fibre, Starlink or LTE)

Coverage

About 100 to 250 m² per access point depending on walls; about 35 users per access point

Backup

UPS sized for the router, switches and access points

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.

Controller

PLC with an HMI touch panel in a control panel

Metering

Modbus RTU/TCP energy meters

Sensors

Level, pressure, flow and temperature sensors (4–20 mA or digital)

Monitoring

4G gateway to a cloud dashboard with alarms

Sizing

I/O count, controller class and panel layout come from the design

Typical values for this type of product, not a specific model. The datasheet of the unit supplied applies; ask us for it.
